9" Industrial-Grade Plastic Hand Cup for Flat or Curved Surfaces

SKU: 91540

This lightweight, heavy-duty hand cup features a lifting capacity of 150 lbs (68 kg) and a flexible vacuum pad for attachment to flat or curved surfaces.

$ 89.25 Excl. Shipping

Specifications

Weight	6 lbs

Product Description

Note: Not for use on thin, fragile materials such as flat, regular glass less than 1/8" (3.18 mm) thick. Features:

Effective attachment to flat or curved surfaces
Red-line indicator warns user of any significant vacuum loss
Easily replaceable handle / release valve and plunger

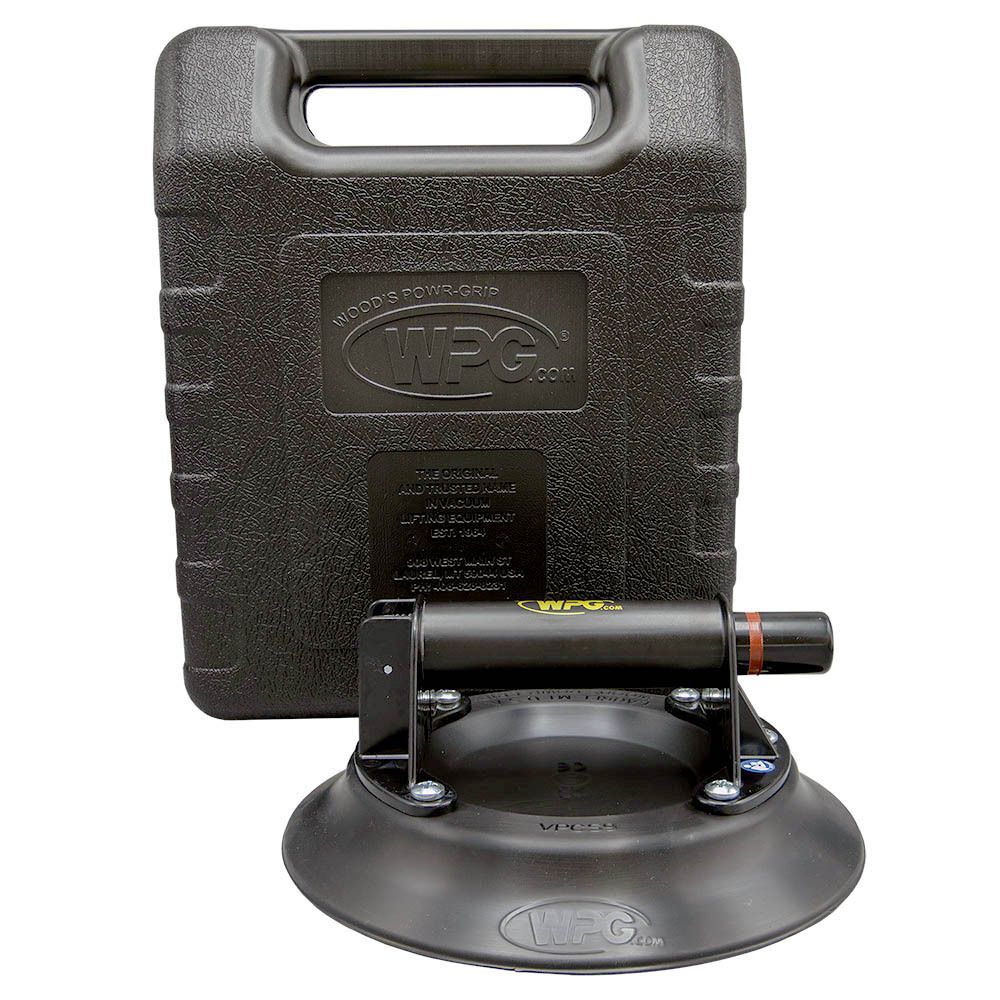

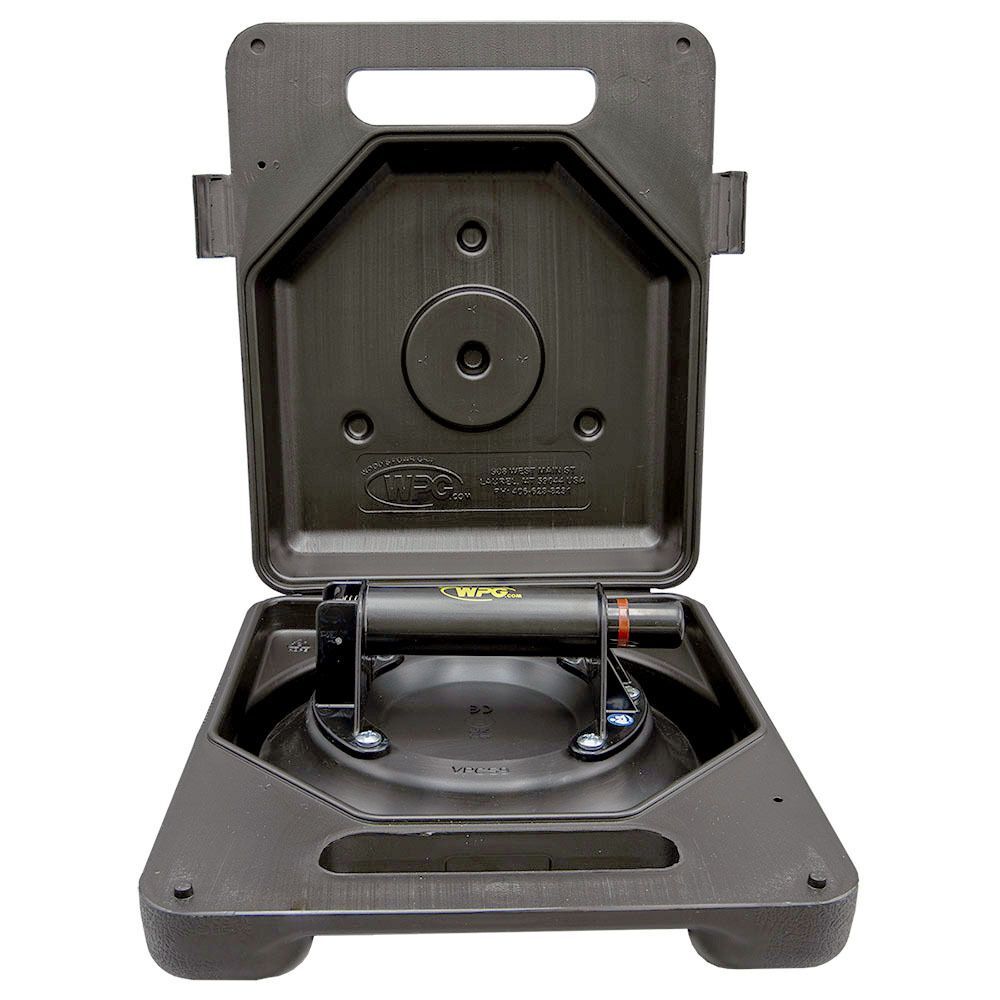

Supplied with protective carrying case

Specifications:

Load Capacity: 150 lbs (68 kg)
Surface Texture: Smooth
Material Porosity: Nonporous
Allowable Surface Curvature: Flat / Curved
Material and Ambient Temperature Range: 10° F (-12° C) — 120° F (49° C)
Pad Diameter: 9" 23 cm)
Pad Model: VPCS9
Rubber Type: Standard
Handle Type: Industrial-Grade Plastic

Instructions Download

Troubleshooting Download
