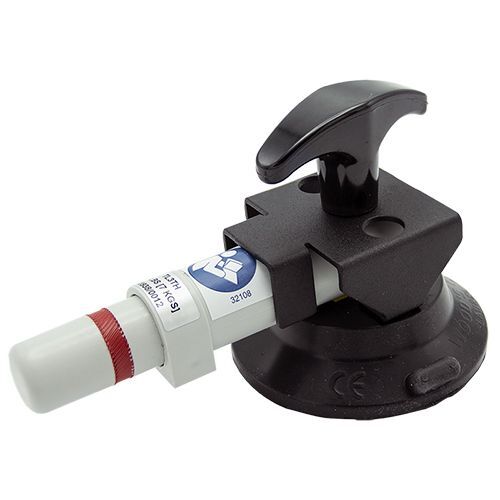

3" Hand Cup with T-Handle for Flat or Curved Surfaces

SKU: 91154

This compact hand cup has a 15 lbs [7 kg] lifting capacity for the accurate positioning of small flat or curved items. This hand cup can also be used as a mounting cup, with 1/4-20 threaded stud when its handle is removed.

$ 43.86 Excl. Shipping

Specifications

Dimensions	8" x 5" x 3.5"
Weight	1 lbs

Product Description

Features:

UV-Resistant rubber is ideal for extended use outdoors
Fast attach and release
Doubles as mounting cup - 1/4-20 threaded stud is exposed when handle removed
Red-line indicator warns user of any significant vacuum loss
Supplied with vacuum pad protector

Specifications:

Load Capacity: 15 lbs [7 kg]
Surface Texture: Smooth
Material Porosity: Nonporous
Allowable Surface Curvature: Flat / Curved
Material and Ambient Temperature Range: 0° F [-18° C] — 120° F [49° C]
Pad Diameter: 3" [8 cm]
Pad Model: TL3
Rubber Type: UV Resistant
Handle Type: Industrial-Grade Plastic

Instructions Download

Troubleshooting Download
