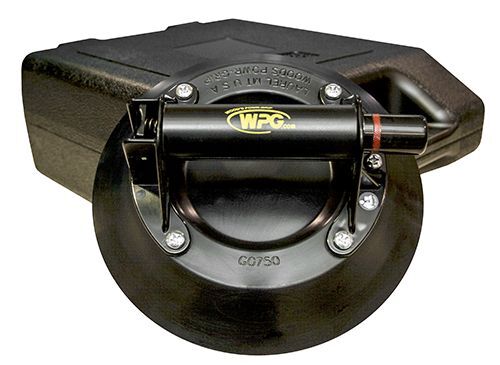

10" Industrial-Grade Plastic Hand Cup for Curved Surfaces
SKU: 91760
This lightweight, heavy-duty hand cup easily attaches to curved nonporous surfaces, to support loads weighing up to 175 lbs (79 kg).
$
91.35
Excl. Shipping
Specifications
| Dimensions | 13.5" x 10.75" x 5.5" |
|---|---|
| Weight | 7 lbs |
Product Description
Note: Not for use on thin, fragile materials such as flat, regular glass less than 1/4" (6.35 mm) thick.
Features:
- Effective attachment to curved loads (not recommended for flat loads)
- Red-line indicator warns user of any significant vacuum loss
- Supplied with protective carrying case
- Load Capacity: 175 lbs (79 kg)
- Surface Texture: Smooth
- Material Porosity: Nonporous
- Allowable Surface Curvature: Curved
- Material and Ambient Temperature Range: 10° F (-12° C) — 120° F (49° C)
- Ideal Uses: Curved or irregular nonporous surfaces
- Pad Diameter: 10" (25 cm)
- Pad Model: G0750
- Rubber Type: Standard
- Handle Type: Industrial-Grade Plastic
Instructions Download
Troubleshooting Download
|
|
|
|
